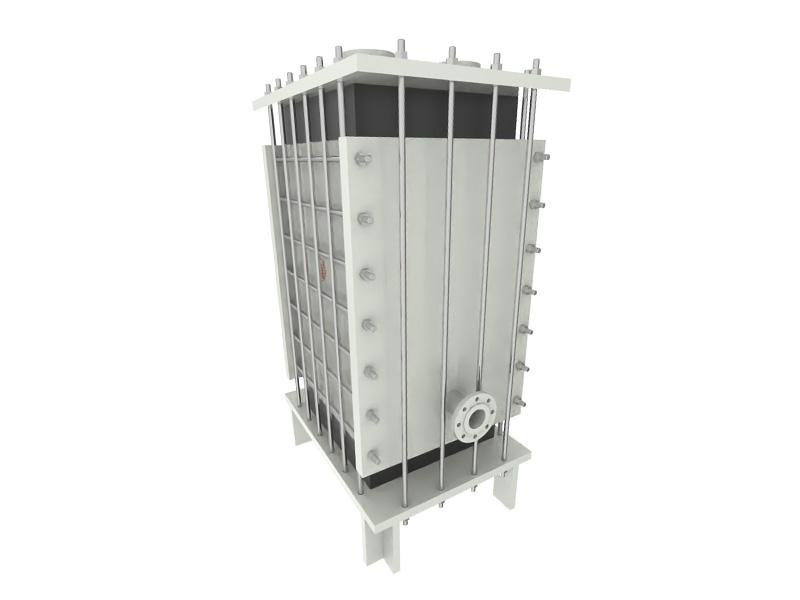

Rectangular Hole Type Graphite Heat Exchanger: A heat transfer device with a rectangular hole pattern in graphite. It offers high thermal conductivity, excellent chemical resistance, and efficient fluid flow for reliable heat exchange in various industrial applications.
การชำระเงิน:
TT L/C PayPal Westunion Moneygramแหล่งกำเนิดสินค้า:
China， Anhui provinceพอร์ตการขนส่ง:
Shanghaiเวลานำ:
1 MonthMOQ:
1บรรจุุภัณฑ์:
Wooden caseสี:
Customziedวัสดุ:
Graphiteอุณหภูมิที่ทำงาน:
-30 to 150 ℃แรงกดดันในการทำงาน:
≤0.3 Mpa
Product review
The seal consists of the graphite head, the graphite heat exchanger block, and its sealing hot plate. Since the heat exchanger block bears pressure as a whole and has no cemented seam, it possesses high structural strength and excellent impact resistance. The water side plate is a casting, which is convenient for repair, assembly, and disassembly.
Product advantages
The Rectangular Hole Type Graphite Heat Exchanger provides high heat transfer efficiency, outstanding chemical corrosion resistance, uniform fluid flow, a large heat exchange area, good mechanical strength, stable operation, convenient maintenance, and a long service life.
Structural diagram
| Parts details | |
| 1 | Liquid inlet |
| 2 | Upper cover plate |
| 3 | Graphite upper head |
| 4 | Graphite upper tube sheet |
| 5 | Intake |
| 6 | Graphite baffle |
| 7 | Graphite heat exchange tube |
| 8 | Equipment shell |
| 9 | Outfall |
| 10 | Graphite lower tubesheet |
| 11 | Lower sealing plate |
| 12 | Lower sealing plate |
| 13 | Q235 lower cover plate |
| 14 | Equipment foot |
