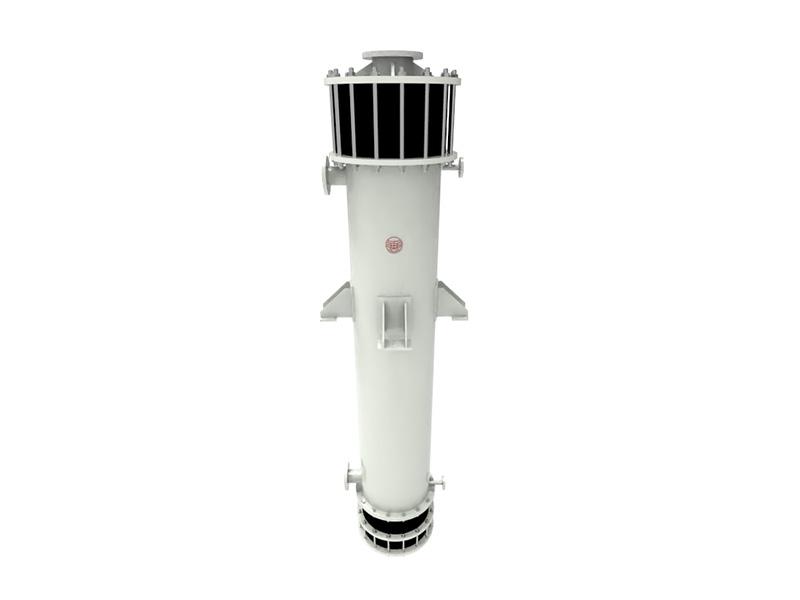

A floating head shell-and-tube graphite heat exchanger is a highly efficient and reliable heat transfer device. It consists of a shell, tubes, a floating head, and other components.
การชำระเงิน:
TT L/C PayPal Westunion Moneygramแหล่งกำเนิดสินค้า:
China， Anhui provinceพอร์ตการขนส่ง:
Shanghaiเวลานำ:
1 MonthMOQ:
1บรรจุุภัณฑ์:
Wooden caseสี:
Customziedวัสดุ:
Graphiteอุณหภูมิที่ทำงาน:
-20 to 140 ℃แรงกดดันในการทำงาน:
Tube range≤0.2Mpa,Shell range≤0.3Mpa
Product review
The equipment features a simple and compact structure with low fluid resistance, enabling the manufacturing of large-scale equipment. However, its pressure and temperature resistance are inferior to those of the block hole type. It is suitable for situations without strong impacts and low vibrations, and it is preferably used as a cooling device (condenser).This equipment can be classified into Type I and Type II. Type I does not have a gas-liquid separator, while Type II is equipped with a gas-liquid separator. Type II should be used as a condenser.
Product advantages
It has high heat transfer efficiency, outstanding chemical resistance, a compact design, ease of maintenance, suitability for large-scale applications, and the ability to handle temperature and pressure variations.
Structural diagram
| Parts details | |
| 1 | Material import |
| 2 | Upper cover plate |
| 3 | Graphite upperhead |
| 4 | Air defense port |
| 5 | Graphite floating head upper cover plate |
| 6 | Outlet |
| 7 | Graphite heat exchange tube |
| 8 | Graphite baffle |
| 9 | Equipment support |
| 10 | Intake |
| 11 | Graphite floating head lower cover plate |
| 12 | Drain port |
| 13 | Graphite lower head |
| 14 | Exhaust outlet |
| 15 | Material export |
