บ้าน ปั๊มแม่เหล็ก

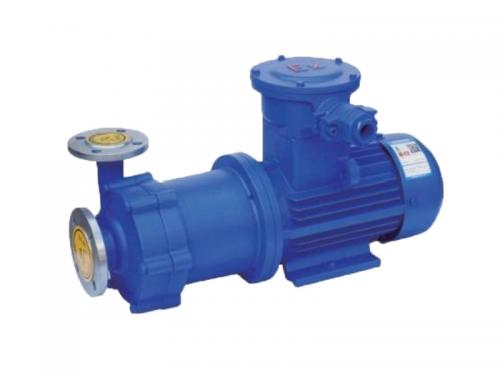

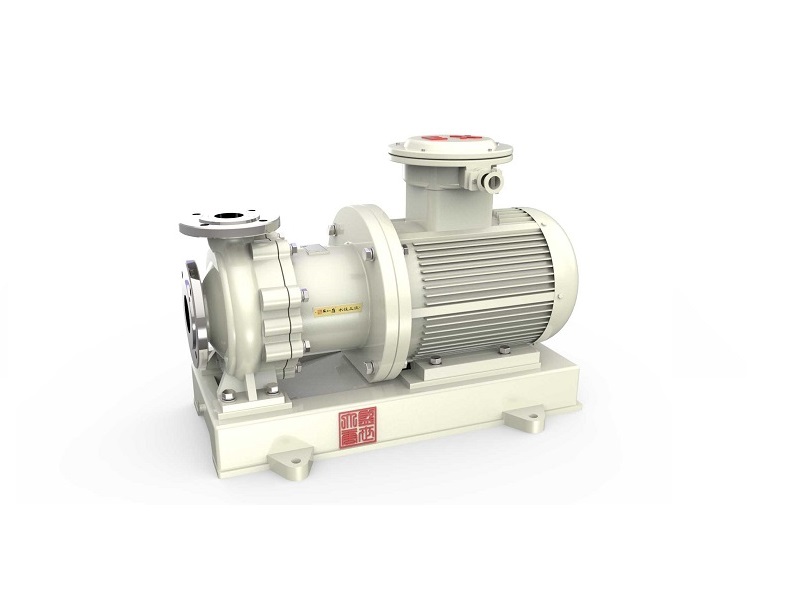

ปั๊มแม่เหล็กสารเคมีทนความร้อน

ปั๊มแม่เหล็กสารเคมีทนความร้อน

ปั๊มแม่เหล็กเป็นปั๊มแรงเหวี่ยงรุ่นใหม่ ประกอบด้วยปั๊มแอคชูเอเตอร์แม่เหล็กและมอเตอร์ แรงแม่เหล็กถ่ายโอนแรงบิดกำจัดการรั่วไหล มันคือการกัดกร่อน - ต้านทานเหมาะสำหรับอุตสาหกรรมต่าง ๆ เช่นสารเคมีและเภสัชกรรม

  • MOQ:

    1
  • บรรจุุภัณฑ์:

    Customzied
  • สี:

    Customized
  • วัสดุ:

    Steel
  • อุณหภูมิที่ทำงาน:

    -60 to 300 ℃
  • แรงกดดันในการทำงาน:

    1.6 to 6.3 MPa
Anhui Shengshi Datangchemical Equipment Group Co, LD
รวมการวิจัยและพัฒนาการผลิตการขายและบริการของปั๊มแม่เหล็กรั่วไหลอุปกรณ์กราไฟท์และอุปกรณ์ที่ทนต่อการกัดกร่อนของ Chmical

ผลิตภัณฑ์ทบทวน

ปั๊มแม่เหล็กที่ไม่มีการรั่วไหลเป็นปั๊มชนิดใหม่ที่ใช้หลักการของ Magnetomechanics ที่ทันสมัยตามเงื่อนไขทางเทคนิค GB / T25140-2010 สำหรับปั๊มพลังงานหมุนแบบเพลา (คลาส II) ซึ่งตอบสนองความต้องการทางเทคนิคของปั๊ม ของแม่เหล็กถาวรเพื่อให้ได้การส่งแรงบิดแบบไม่สัมผัส เนื่องจากสื่อถูกล้อมรอบในแขนแยกแบบคงที่วัตถุประสงค์ของการสูบฉีดกลางโดยไม่ต้องรั่วไหลและปัญหาการรั่วไหลของซีลเพลาของปั๊มไดรฟ์เชิงกลได้รับการแก้ไขอย่างสมบูรณ์

ข้อได้เปรียบของผลิตภัณฑ์

1. แม่เหล็กใช้แม่เหล็กเฟอร์ไรต์, ND-FE-B และ Samarium Cobalt ซึ่งมีแม่เหล็กที่ดีความต้านทานอุณหภูมิสูงและไม่มี demagnetization;

2. แขนเสื้อและตลับลูกปืนแบบเลื่อนทำจากซิลิกอนคาร์ไบด์ที่ทนต่อการสึกหรอสูง, กราไฟท์, tetrafluoro และวัสดุอื่น ๆ และติดตั้งร่องหล่อลื่นเพื่อให้แน่ใจว่าอายุการใช้งานของปั๊ม

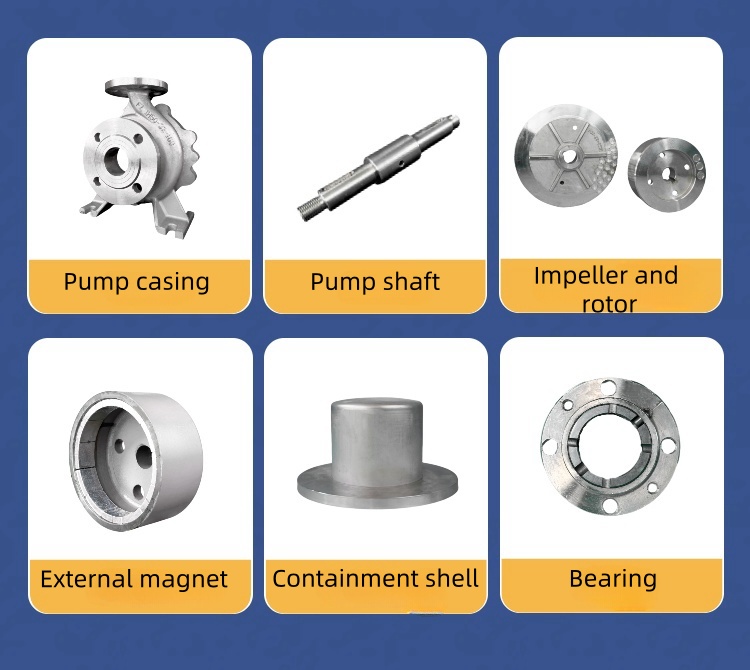

แผนผังโครงสร้าง

ส่วนหนึ่งวัสดุส่วนหนึ่งวัสดุส่วนหนึ่งวัสดุ
●ร่างกายปั๊ม304/116/116L●¥ thrust collarอัลลอยด์แข็ง●ª back nut304/116/116L
●¡น็อตใบพัด304/116/116L● ¦pump cover304/116/116L●«ออกแม่เหล็กแม่เหล็กถาวร /HT200
●¢ใบพัด304/116/116L●§gasketptfe●การเชื่อมต่อht200
●เพลาหลัก£304/116/116L●¨distance sleeve304/116/116L●มอเตอร์ตามที่ลูกค้าร้องขอ
●¤เพลาแขนกราไฟท์/sic●©แม่เหล็กภายในแม่เหล็กถาวร/304/316/116L●แผ่นเบสht200

แผนผังโครงสร้าง

ข้อมูลประสิทธิภาพ

พิมพ์อำนาจที่ได้รับการจัดอันดับการไหลของการจัดอันดับหัวจัดอันดับแรงดันไฟฟ้าวัสดุปลอกปั๊มการดูด
25-20-1252.22.520380V304/116/116L25*20
25-20-16032.532380V304/116/116L25*20
25-20-2005.52.550380V304/116/116L25*20
25-20-250112.580380V304/116/116L25*20
32-20-1252.23.220380V304/116/116L32*20
32-20-16033.232380V304/116/116L32*20
32-20-2005.53.250380V304/116/116L32*20
32-20-250113.280380V304/116/116L32*20
40-25-1252.26.320380V304/116/116L40*25
40-25-16036.332380V304/116/116L40*25
40-25-2005.56.350380V304/116/116L40*25
40-25-250116.380380V304/116/116L40*25
50-32-125312.520380V304/116/116L50*32
50-32-160412.532380V304/116/116L50*32
50-32-2007.512.550380V304/116/116L50*32
50-32-2501512.580380V304/116/116L50*32
65-50-12542520380V304/116/116L65*50
65-50-1607.52532380V304/116/116L65*50
65-40-200152550380V304/116/116L65*40
65-40-25018.52580380V304/116/116L65*40
80-65-1257.55020380V304/116/116L80*65
80-65-160155032380V304/116/116L80*65
80-50-20018.55050380V304/116/116L80*50
100-80-1251510020380V304/116/116L100*80
100-80-16018.510032380V304/116/116L100*80

ช่วงประสิทธิภาพ

การออกแบบแรงกดดัน: 1.6 ~ 6.3mpa, ไหล: 0.75 ~ 460m³/h ยก: 5 ~ 125m พลัง: 0.55 ~ 110kW

อุณหภูมิที่ใช้บังคับ: -60 ~ 300 ●มีการใช้วัสดุใหม่และความต้านทานอุณหภูมิสามารถเข้าถึง 450 ●

แอปพลิเคชันผลิตภัณฑ์

มันถูกนำมาใช้อย่างกว้างขวางในการขนส่งของเหลวกัดกร่อนในกระบวนการผลิตปิโตรเลียมอุตสาหกรรมเคมีการทำอัลคาไลการถลุงดินหายากสารกำจัดศัตรูพืชสีย้อมยาการผลิตกระดาษการชุบด้วยไฟฟ้าอิเล็กโทรไลซิสและอื่น ๆ
